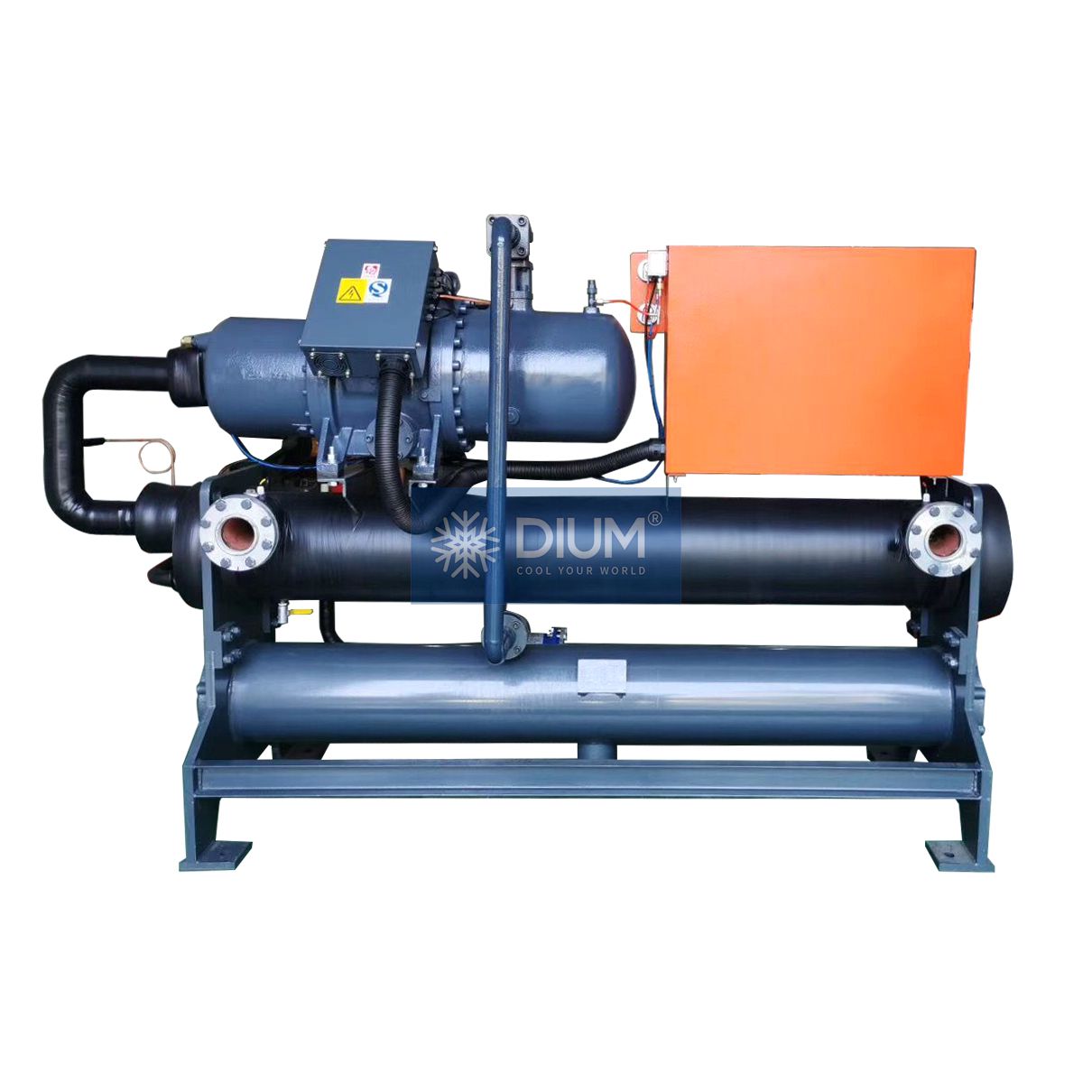

Water-cooled Screw chiller

Water-cooled Screw chiller is a type of refrigeration equipment used for cooling large buildings or industrial processes. It operates by using a screw compressor, which is known for its efficiency and reliability.

Water-cooled Screw chiller

◎ Water is used to dissipate heat and be used with cooling water towers

◎ Screw compressor, larger cooling capacity

◎ High efficiency condenser

◎ Stable operation, power saving and durable

◎ Multiple security protection

◎ Working cooling temperature adjustable from 5-35 degrees

Parameters

Water-cooled Screw chiller

◎ Water is used to dissipate heat and be used with cooling water towers

◎ Screw compressor, larger cooling capacity

◎ High efficiency condenser

◎ Stable operation, power saving and durable

◎ Multiple security protection

◎ Working cooling temperature adjustable from 5-35 degrees

Water-cooled Screw chiller
Item	Mode	Hytau®WC-40S	Hytau®WC-50S	Hytau®WC-60S	Hytau®WC-70S	Hytau®WC-80S	Hytau®WC-100S	Hytau®WC-120S
Nominal Cooling capacity (kcal/h kw)		103888	135794	147920	180600	210700	269180	321124
Nominal Cooling capacity (kcal/h kw)		120.8	157.9	172	210	245	313	373.4
Total input power (kw)		30.5	37.9	45.5	52.9	60.5	75	90
Max.running current (A)		61	75.8	91	105.8	121	150	180
Power supply voltage		3PH 380V 50HZ(200V/220V/415V 50HZ/60HZ)
refrigerant	Type	R22(R407C/R134a/R410A)
	Charge (kg)	20	25	30	35	40	50	60
	Control mode	Thermostatic expansion valve
Compressor	Type	Semi-Hermetic screw type)
	Power (kw)	30	37.5	45	52.5	60	75	90
	Starting method	Y- △
	Capacity control type (％ )	0-33-66-100		0-25-50-75-100
Evaporator	Type	Shell and Tube
	Chilled fluid flow (m³/h)	20.7	26	30.4	42.3	48.2	55	68.2
	Inlet/outlet pipe caliber (Inch)	3''	3''	3''	3''	4''	4''	4''
Condense	Type	Shell and Tube
	Cooling fluid flow (m³/h)	26	32.5	37.8	52.1	59.3	67.7	83.7
	Inlet/outlet pipe caliber (Inch)	3''	3''	3''	3''	4''	4''	4''
Safety protection		Compressor overheating, overloading, high/low pressure ,flo switch, phase sequence, phase-missing,Solube bolt, anti-freezing.
Dimension	L (mm)	2000	2000	2350	2400	2500	3000	3100
	W (mm)	1040	1040	1045	1060	1200	1110	1180
	H (mm)	1400	1400	1400	1400	1500	1500	1500
Weight (kg)		820	950	1120	1300	1560	1720	2030
Running weight (kg)		970	1060	1270	1480	1780	1960	2250
Note: 1. nominal cooling capacity calculated according to:lnlet/outlet chilled fluid temperature : 12℃ /17℃ ,Inlet/outlet cooling water temperature: 30℃ /35℃ . 2. Working condition:The temperature range of chilled fluid is from 5℃ to 30℃ ,The temperature difference between inlet and outlet chilled fluid is from 3℃ to 8℃ ,The temperature range of cooling water from 18℃ to 30℃ Temperature difference between inlet and outlet cooling water is from 3.5℃ to 10℃ .We reserve the right to modify the above information without further notice

1. Cooling water tower	2. Circulating pump of water tower	3. Angle valve
4. Drying fiter	5. Expansionvalve	6. Automatic water makeup nozzle
7. Condenser	8. High pressure switch	9. Low pressure switch
10. Compressor	11. Evaporator	12.Bypass valve (regulating valve)
13. Refrigerated water pump	14. Cooling water return	15. Cooling water outlet
16. Drain valve	17. Cooling water outlet	18. Cooling water inlet

◎ Tips：The type and model of the machine are different, so the selection and appearance of accessories are also slightly different

Multiple protections-alert
1.Temperature abnormalities	2.The power phase inversion	3.High- and low-pressure failure	4.Overload of compressor
5.Overheat of compressor	6.The pump is overloaded	7.Low water level alarm	8.Short circuit
9.Overload of current	10.Protection against freezing	11.Exhaust pressure protection	12.Excellent water flow protection
