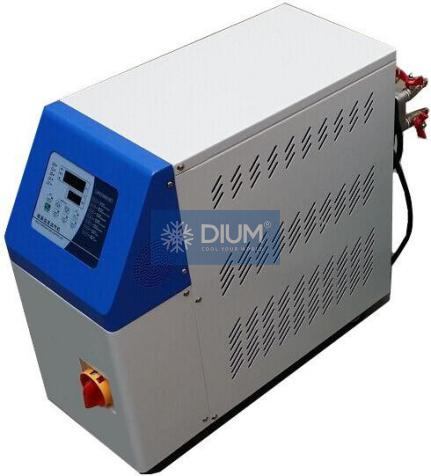

Water Temperature Control Units Standard

Graphic
Detail

Water Temperature Control Units Standard

Water Temperature Control Units Standard (WTCUs) are essential in various industrial applications, primarily in processes that require precise temperature regulation.

Water Temperature Control Units Standard/Water Temperature Control Units (WTCUs)

◎ heat transfer medium "water",

◎ Stable operation

◎ Fast temperature ramp-up speed, accurate and stable temperature

◎ Energy saving

◎ Microcomputer controller

◎ Multiple security protection

◎ Fault indication

◎ Temperature control 30-120°C

Parameters

Water Temperature Control Units Standard/Water Temperature Control Units (WTCUs)

◎ heat transfer medium "water",

◎ Stable operation

◎ Fast temperature ramp-up speed, accurate and stable temperature

◎ Energy saving

◎ Microcomputer controller

◎ Multiple security protection

◎ Fault indication

◎ Temperature control 30-120°C

Mode	Hytau®WTC-6S	Hytau®WTC-9S		Hytau®WTC-12S		Hytau®WTC-18S	Hytau®WTC-24S
Temperature control range℃	30-120℃
Temperature control accuracy℃	±1℃
Power supply v	AC220 V/3Φ 380V 50HZ/60HZ
Heat transfer medium	Water
Cooling mode	Direct cooling/indirect cooling
Heating energy KW	6	9		12		18	24
Pump horsepower KW/HP	0.37/0.5	0.75/1	1.5/2	0.75/1	1.5/2	1.5/2	2.25/3
L/MIN/KG/cm²	35L/MIN 2.6KG/CM²	45L/MIN 2.6KG/CM²	145L/MIN 2.6KG/CM²	45L/MIN 2.6KG/CM²	145L/MIN 2.6KG/CM²	145L/MIN 2.6KG/CM²	165L/MIN 3.0KG/CM²
L/MIN/KG/cm²	45L/MIN 2.6KG/CM²	58L/MIN 2.6KG/CM²	180L/MIN 2.6KG/CM²	58L/MIN 2.6KG/CM²	180L/MIN 2.6KG/CM²	180L/MIN 2.6KG/CM²	205L/MIN 3.0KG/CM²
Cooling water inlet pressure KG/cm²	2
Maximum power consumption KW	6.5	9.5	10.5	12.75	13.5	19.5	26.25
Cooling water piping INCH	1/2"PT
Circulating water piping INCH	2 in 2 out to.3/8"PT	4 in 4 out to 3/8"PT or 1 in 1 out to 1"PT.
External dimension CM	61x25x50	64x29x59	76x30x60	64x29x60	76x30x60	76x30x60	95x46x93
Net weight KG	35	45	55	70	75	80	85

Water Temperature Control Units Standard/Water Temperature Control Units (WTCUs)

Note: Due to technological innovation, the following data is for reference, all models are subject to the actual product, pump

and power can be selected according to customer requirements.

★ Water-based mold temperature machine with mold return water direct cooling/indirect cooling,

★ Then the pump pressurized through the electric heating tube high-temperature heating and sent to the mold to meet the heating and constant temperature requirements.

★Imported hot water pump

- assure reliable quality stable running

★Heat transfer medium "water"

- direct cooling/indirect cooling with quality plate heat exchanger

★Taiwan BANGPU microcomputer controller

- Easy operation

- Complete safety protection

- Excellent fault indication system

- Power saving 35%

★ Advance Temperature Controller System

- temperature rises and falls fast

- the temperature control accurate and stable

- temperature tolerance ±1℃ (30-120℃ ).

★The control panel and the body are independent and isolated, which can assure good thermal insulation effect while extending the service life.

★Advanced processing design

-Stainless steel pipes are iIntegrated die-casting molding

-high pressure design

- explosion-proof design

- uniform heating,

- No leakage.

★Can be customized according requirement.
