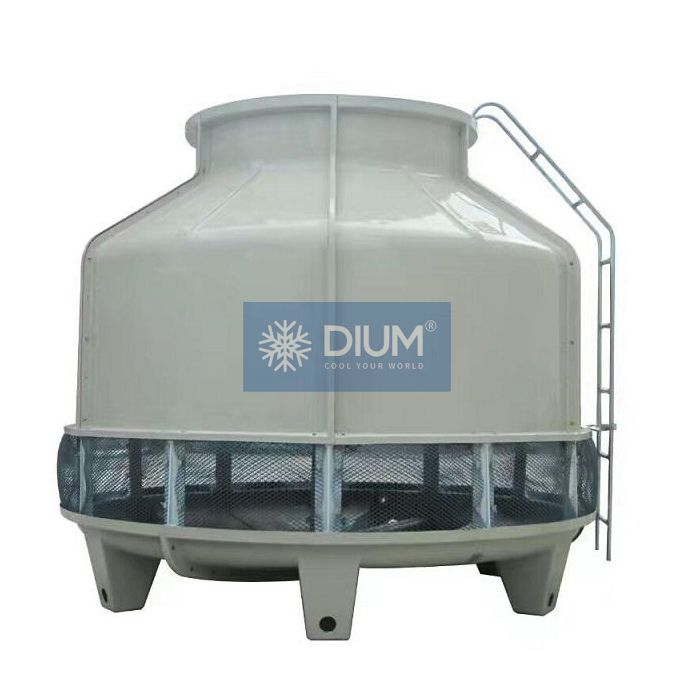

Cooling Towers

Cooling towers are heat rejection devices that remove heat from industrial processes or buildings and dissipate it into the atmosphere. They are commonly used in power plants, chemical processing, refineries, and commercial buildings to cool water used in various applications.Cooling Towers and water cooled chiller Use together

Cooling Towers

◎ Use with water-cooled chiller

Parameters

Cooling Towers

◎ Use with water-cooled chiller

Cooling Towers Part1/2
MODEL	FLOW(m³H）	TOWER DIMENSION		FAN DIAMETER（MM）	MOTOR（kw）	DRY	WET
MODEL	FLOW(m³H）	DIAMETER	HEIGHT（H）	FAN DIAMETER（MM）	MOTOR（kw）	DRY	WET
Hytau®CT-10	7.8	930	1740	635	0.18-6P	46	190
Hytau®CT-15	11.7	1070	1630	635	0.37-6P	54	290
Hytau®CT-20	15.6	1170	1870	770	0.55-6P	67	300
Hytau®CT-25	19.5	1380	2095	770	0.75-6P	98	500
Hytau®CT-30	23.4	1660	1965	770	0.75-6P	116	530
Hytau®CT-40	31.2	1660	2050	930	1.50-6P	130	550
Hytau®CT-50	39.2	1880	2250	930	1.50-6P	190	975
Hytau®CT-60	46.8	2100	2350	1180	1.50-8P	240	1250
Hytau®CT-80	62.4	2100	2490	1180	1.50-8P	260	1280
Hytau®CT-100	78.1	2910	2770	1450	2.25-8P	500	1690
Hytau®CT-125	97.5	2910	2870	1450	2.25-8P	540	1740
Hytau®CT-150	117	2910	2870	1450	2.25-8P	580	1780
Hytau®CT-175	136.8	3360	3070	1750	4.0-10P	860	1960
Hytau®CT-200	156.2	3360	3070	1750	4.0-10P	880	1980
Hytau®CT-225	175.5	4150	4040	2100	5.5-4P	1050	2770
Hytau®CT-250	195.1	4150	4040	2100	5.5-4P	1080	2800
Hytau®CT-300	234	4730	4260	2400	7.5-4P	1760	3830
Hytau®CT-350	273.2	4730	4260	2400	7.5-4P	1800	3930
Hytau®CT-400	312.1	5600	4610	2745	11.0-4P	2840	5740
Hytau®CT-500	392.4	5600	4610	2745	11.0-4P	2900	5800
Hytau®CT-600	468	6600	5230	3400	15.0-4P	3950	9350
Hytau®CT-700	547.2	6600	5230	3400	18.5-4P	4050	9450
Hytau®CT-800	626.4	7600	5475	3700	22.0-4P	4700	11900
Hytau®CT-1000	781.2	7600	5475	3700	22.0-4P	4900	12100

1. The design working conditions of this series of cooling towers are: dry bulb temperature 31.5° C, humidity temperature 27° C, inlet water temperature 37° C, outlet water temperature 32° C and atmospheric pressure 99.4kpa.

2. During the installation of cooling tower pipes, customers need to add Y-type filters, valves, pressure gauges and other auxiliary fittings at the water inlet.

3. The standard for fans with a diameter of more than 2100 is a direct-drive motor, and there is no reducer.

Cooling Towers Part2/2
MODEL	FOUNDATION DIMENSION（mm）					PIPING CONNECTION（mm）
MODEL	A	B	C	D	E	INLET	OUT	OVERFLOW	DRAIN	QULCK FEED	AUTO FEED
Hytau®CT-10	479	415	250			40	40		25	15
Hytau®CT-15	768	665	250			50	50		25	15
Hytau®CT-20	768	665	250			50	50		25	15
Hytau®CT-25	960	678	300			80	80		25	15
Hytau®CT-30	1180	834	300			80	80		25	15
Hytau®CT-40	1180	834	300			80	80		25	15
Hytau®CT-50	1350	954	300			80	80		25	15
Hytau®CT-60	1530	1082	300			100	100		25	15
Hytau®CT-80	2400	1082	300			100	100		25	15
Hytau®CT-100	2400	1200	300	600		125	125	25	25	20
Hytau®CT-125	2400	1200	300	600		125	125	25	25	20
Hytau®CT-150	2800	1200	300	600		150	150	25	25	20
Hytau®CT-175	2800	1071	300	600		150	150	25	25	20
Hytau®CT-200	4250	1071	300	600		150	150	25	25	20
Hytau®CT-225	4250	2125	300	1000		200	200	50	50	32	32
Hytau®CT-250	4800	2125	300	1000		200	200	50	50	32	32
Hytau®CT-300	4800	2440	300	1000		200	200	50	50	40	40
Hytau®CT-350	5650	2440	300	1200		200	200	50	50	40	40
Hytau®CT-400	5650	2162	300	1200	3100	200	200	50	50	50	50
Hytau®CT-500	6720	2162	300	1200	3100	250	250	50	50	50	50
Hytau®CT-600	6720	2571	300	1200	3100	250	250	50	50	50	50
Hytau®CT-700	6720	2571	300	1200	3100	250	250	50	50	50	50
Hytau®CT-800	7600	2908	300	1200	4160	300	300	50	50	50	50
Hytau®CT-1000	7600	2908	300	1200	4160	300	300	50	50	50	50

◎ Use with water-cooled chiller
