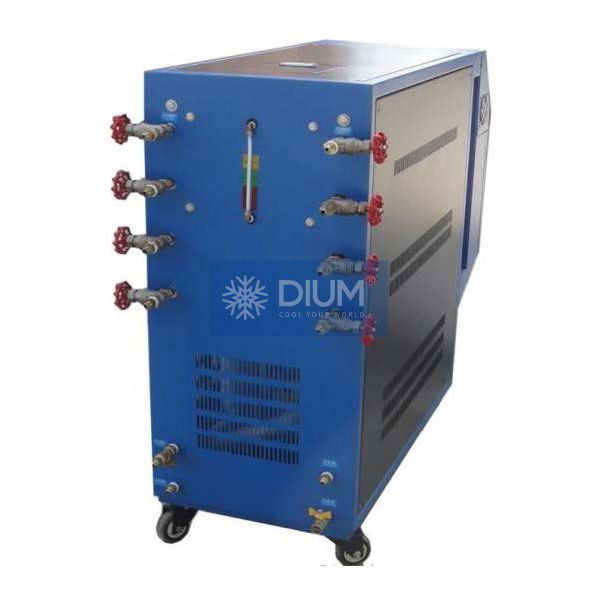

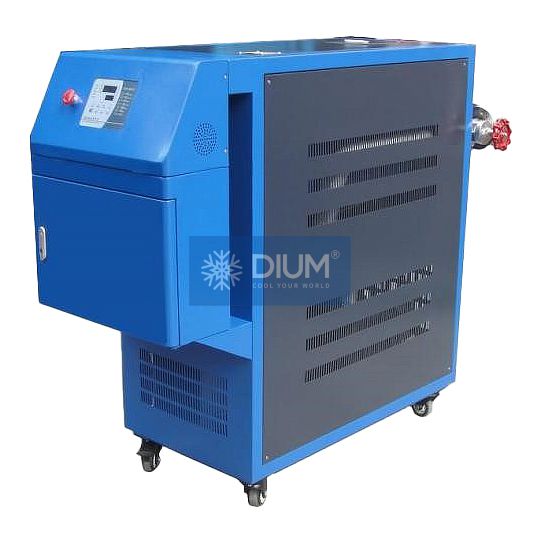

Oil Temperature Control Units(High）

Oil Temperature Control Units(High)/High-Temperature Oil Temperature Control Units (OTCUs) are specialized systems used to control and maintain high temperatures in oil-based applications. These units are crucial in various industries such as plastic processing, rubber manufacturing, food production, and chemical processing, where specific temperature management is essential for optimal performance.

Oil Temperature Control Units(High)/High-Temperature Oil Temperature Control Units (OTCUs)

◎ Reliable quality, few failures, stable operation.

◎ Simple operation,

◎ Multiple security protections

◎ Fault alarm and display

◎ Energy saving

◎ Long service life

◎ Temperature control 30-350°C

Parameters

Oil Temperature Control Units(High)/High-Temperature Oil Temperature Control Units (OTCUs)

◎ Reliable quality, few failures, stable operation.

◎ Simple operation,

◎ Multiple security protections

◎ Fault alarm and display

◎ Energy saving

◎ Long service life

◎ Temperature control 30-350°C

MODEL	Hytau®OTC-18H		Hytau®OTC-24H	Hytau®OTC-36H
Temperature control range℃	30-350℃
Temperature control accuracy℃	±1℃
Power supply v	AC220 V/3Φ380V 50HZ/60HZ
Heat transfer medium	oil
Cooling mode	Indirect cooling (plate heat exchanger)
Heating energy KW	18		24	36
Pump horsepower KW/HP	0.75/1	1.5/2	1.5/2	2.25/3
L/MIN/KG/CM²	60L/MIN 2.6KG/CM²	145L/MIN 2.6KG/CM²	145L/MIN 2.6KG/CM²	200L/MIN 3.0KG/CM²
L/MIN/KG/CM²	120L/MIN 2.6KG/CM²	180L/MIN 2.6KG/CM²	180L/MIN 2.6KG/CM²	225L/MIN 3.0KG/CM²
Cooling water inlet pressure kg/cm KG/CM²	2.6
Make-up tank capacity (L)	10		30
Maximum power consumption KW	13.5		19.5	26.25
Cooling water piping INCH	1/2"PT
Circulating water piping INCH	2 in 2 out /4 in 4 out to 3/8"PT or 1 in 1 out to 1"PT.
External dimension CM	102X36X75	76X30X65	114X45X80	115X52X80
Net weight KG	110	150	150	200

Oil Temperature Control Units(High)/High-Temperature Oil Temperature Control Units (OTCUs)

Note: Due to technological innovation, the following data is for reference, all models are subject to

the actual product, pump and power can be selected according to customer requirements.

★ The oil type mold temperature machine is cooled indirectly by the cooler by the mold return oil.

★ Then the pump pressurized through the electric heating tube high-temperature heating and sent to the mold to meet the heating and constant temperature requirements.

★Imported hot water pump

- assure reliable quality stable running

★Heat transfer medium "Oil"

- direct cooling/indirect cooling with quality plate heat exchanger

★Taiwan BANGPU microcomputer controller

- Easy operation

- Complete safety protection

- Excellent fault indication system

- Power saving 35%

★ Advance Temperature Controller System

- temperature rises and falls fast

- the temperature control accurate and stable

- temperature tolerance ±1℃ (30-350℃ ).

★The control panel and the body are independent and isolated, which can assure good thermal insulation effect while extending the service life.

★Advanced processing design

- Stainless steel pipes are iIntegrated die-casting molding

- high pressure design

- explosion-proof design

- uniform heating,

- No leakage.

★Can be customized according requirement.
